Through continuous research and development for the advancement of future agriculture, we provide a diverse range of agricultural product sorting solutions.
*The product image may differ from the actual product.
*The product image may differ from the actual product.

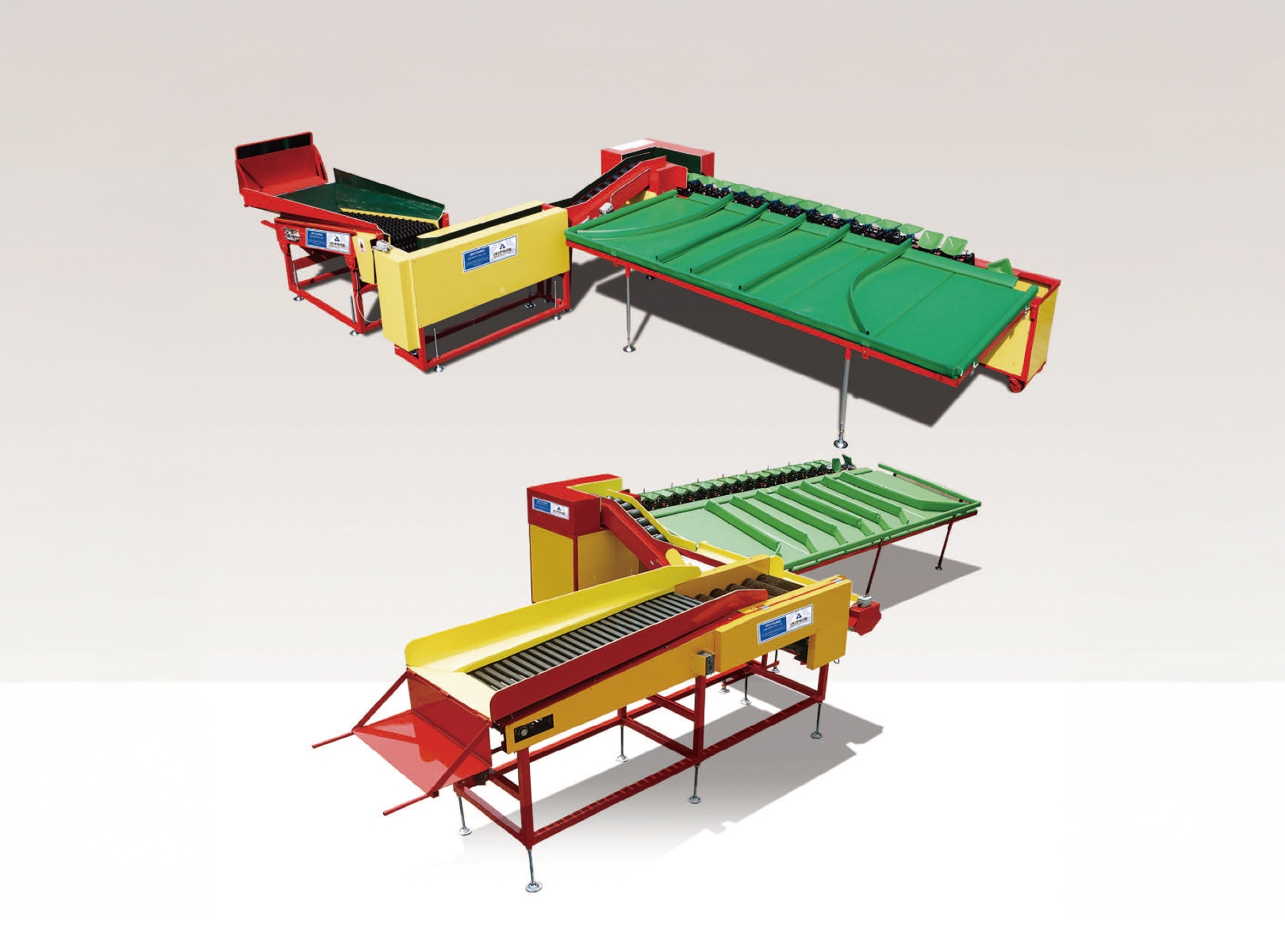

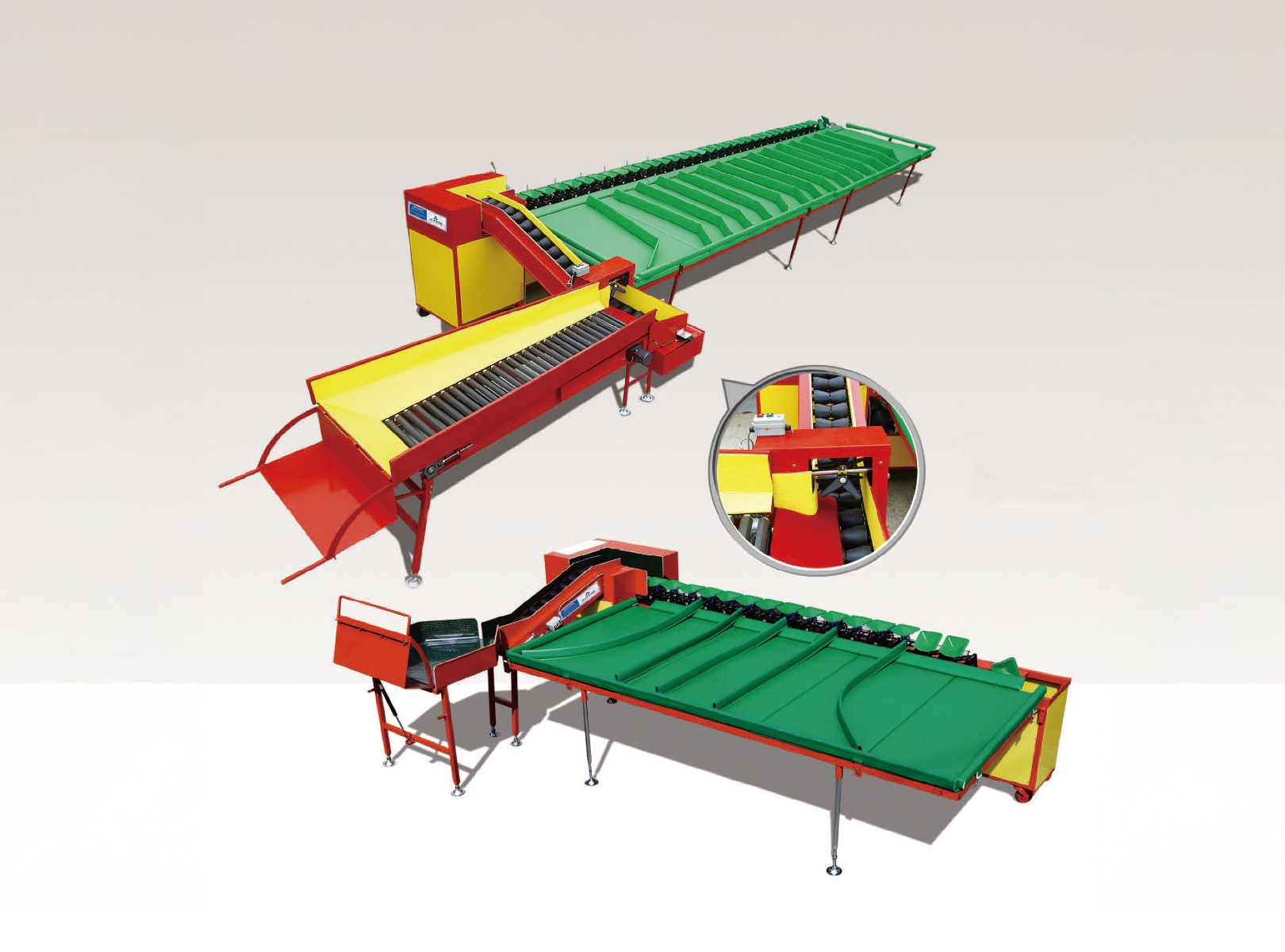

Mechanical Weight Sorter
Features
-
1. Automatic / Semi-Automatic Type
- Minimizes fruit damage
- Offers two types: automatic and semi-automatic
- Easy to operate and move -
2. Brush Washing Type
- Inline and aligned brush washing system
- Lever principle-based weight sorting
- Designed with excellent durability and performance (manufactured using new plastic materials)
- Firmly fixed without adjusting the measurement and rotation levels, ensuring stable sorting
- Apple
- Persimmon
- Peach
- Tomato
- Kiwi
- Paprika
- ...
Machine Specifications
| Model | Dimensions (L × W × H) (mm) | Classification | Power Supply | Sorting Capacity | Sorting Range | Accuracy |
|---|---|---|---|---|---|---|
| JYM-3308 | 8,885 × 1,625 × 1,000 | 8 Lanes (Excluding 2 Out-of-Grade Lanes) | Single Phase 220V, 220W | 7,200 ~ 10,000 pcs/hour | 80 ~ 600g | ±5g |
| JYM-3310 | 4,885 × 1,625 × 1,000 | 10 Lanes (Excluding 2 Out-of-Grade Lanes) | Single Phase 220V, 440W | |||
| JYM-3313 | 5,840 × 1,625 × 1,000 | 13 Lanes (Excluding 2 Out-of-Grade Lanes) | ||||
| JYM-3316 | 6,955 × 1,625 × 1,000 | 16 Lanes (Excluding 2 Out-of-Grade Lanes) |
